VTX Configuration on the BORG Stacks (Nazgul F5 V3 / F7)Updated 4 days ago

The BORG F7 Mini FC has an integrated 12V BEC which provides stable power for your VTX system. It also allows remote control to switch it on and off. When this settings is configured incorrectly, the VTX will not receive power.

By default, all our BNFs with a BORG Stack come with the VTX_ON_OFF Mode.

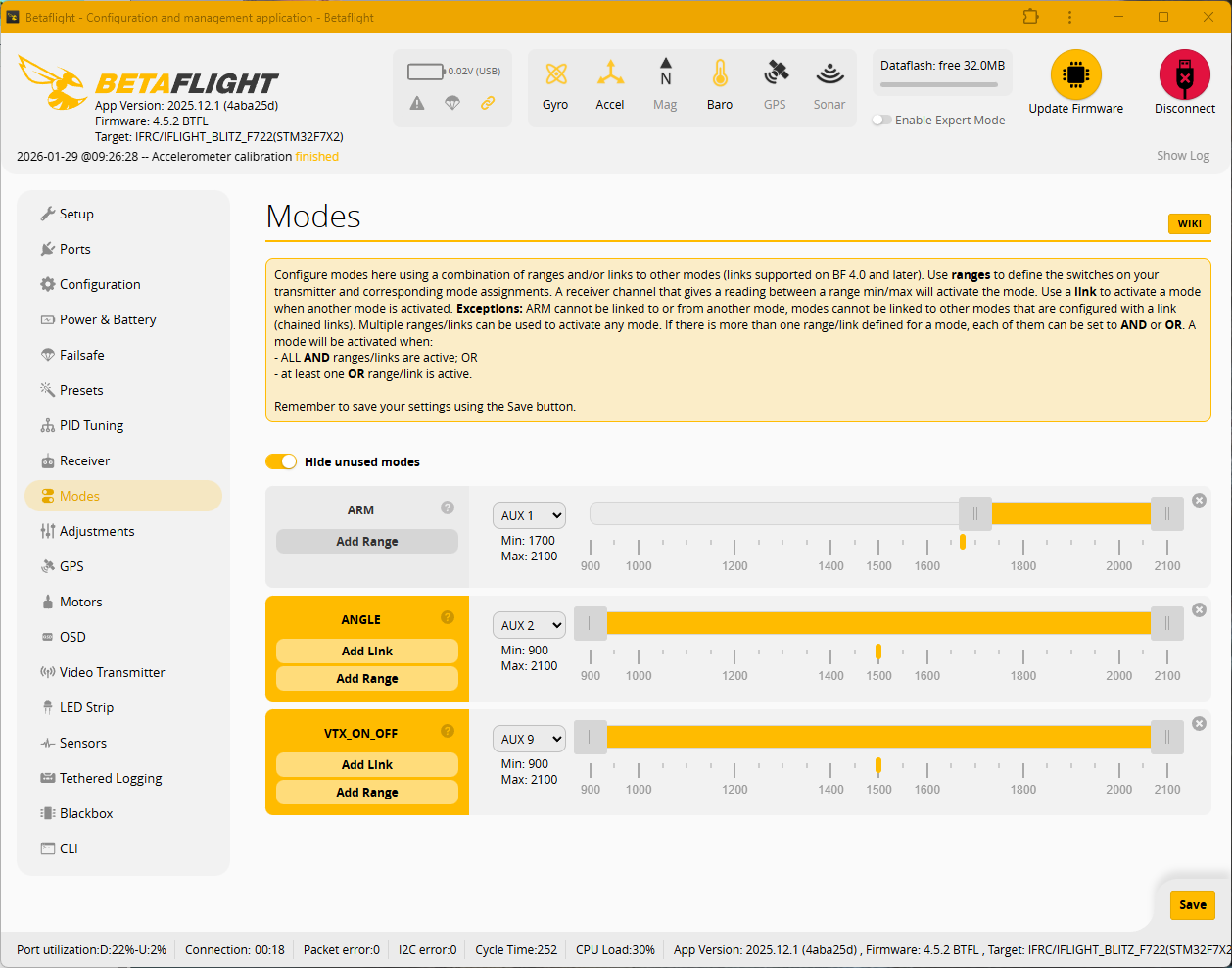

See screenshot below

This setting must remain active on your drone. If you remove this mode, the VTX will not receive power.

When your VTX does not power on, please first check the modes tab in Betaflight. If the VTX_ON_OFF Mode is missing, please use our preset to reset everything to factory default settings.

We have another article, Betaflight Presets (Recovery), which will guide you through the preset process. Please note that it is not necessary nor recommended to install a new firmware. You can start with number 5, Adding iFlight Factory Recovery Presets.
